Vikram-1 full analysis: how Skyroot reached orbit with ISRO’s infrastructure — and what the economics still have to prove

Sriharikota / India, 18–20 July 2026 — Skyroot Aerospace did not succeed by recreating every part of India’s public space infrastructure on its own. It succeeded through a carefully divided model:

• Skyroot owned the launch-vehicle architecture, systems engineering, composites, avionics, software, stage-separation technology and commercial programme.
• ISRO supplied infrastructure that no startup could economically duplicate at speed: propellant-processing facilities, static-test stands, liquid-engine testing, launch-pad access, trajectory support, safety supervision and technical reviews.
• Private industrial partners supplied specialised materials and components — notably solid propellant from Solar Industries, according to post-launch industry reporting.
• Investors absorbed nearly eight years of development risk before orbital-launch revenue became possible.
• Skyroot selected a technically conservative first orbital vehicle: three solid stages plus a relatively small liquid orbital stage, rather than attempting a large turbopump-fed cryogenic rocket immediately.

The central conclusion is simple:

Vikram-1 is privately developed, but institutionally enabled. It is not an independently built ecosystem operating outside ISRO.

Tamil Nadu readers have a direct institutional link: ISRO states that the Raman-I liquid upper-stage engine was tested at the Liquid Propulsion Systems Centre (LPSC) test facility — part of the same national propulsion chain that has long run through Tamil Nadu’s Mahendragiri complex.

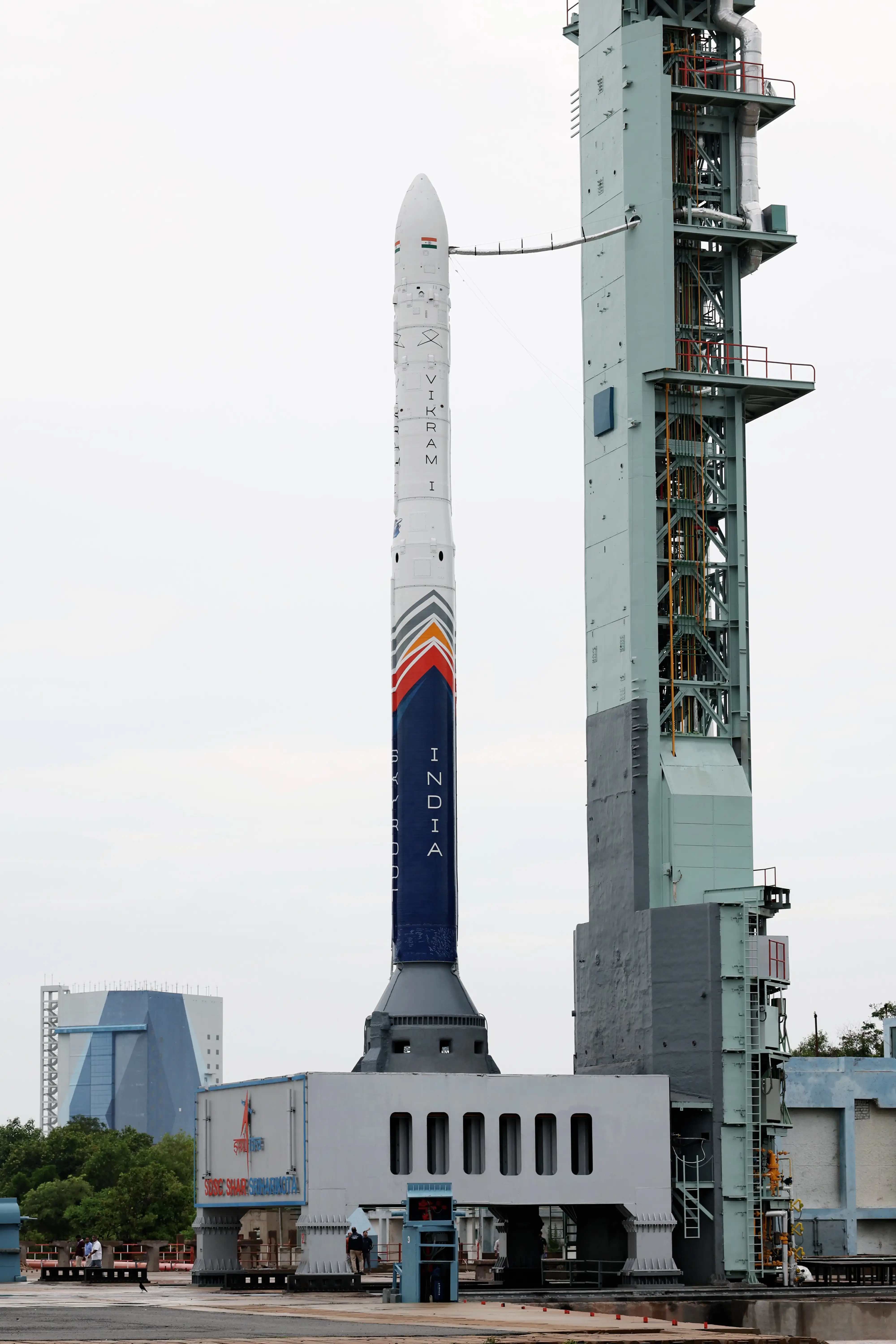

Vikram-1 is a four-stage expendable small-satellite launcher.

Skyroot markets Vikram-1 for rapid, precise and customisable small-satellite deployment. Company materials cite capacities on the order of 350 kg to LEO and 260 kg to sun-synchronous orbit, with dedicated-launch and custom-orbit options.

This was more than a rocket test. The mission validated an entire chain: vehicle manufacturing, propellant casting, structural integrity, stage ignition and separation, avionics and flight software, guidance and control, ground processing, payload integration, range safety, orbital injection, and government–private launch authorisation.

Reaching orbit is fundamentally different from merely crossing the recognised boundary of space. A suborbital rocket can rise and fall. An orbital rocket must accelerate horizontally to roughly orbital velocity while controlling structural loads, staging, attitude and insertion accuracy.

Lowest-complexity credible orbital architecture

The most important early decision was using three solid stages followed by one liquid stage.

Solid propulsion offers few moving propulsion components, no turbopumps, simpler last-minute propellant loading, long storage life, high liftoff thrust and relatively straightforward launch preparation once the manufacturing process stabilises.

The disadvantage is that a solid motor generally cannot be shut down, deeply throttled or restarted. Its thrust profile is largely fixed once ignited.

Skyroot therefore reserved the finer orbital work for the liquid upper stage:

• Solid stages produce most of the energy required to climb through the atmosphere and gain velocity.
• Liquid stage and small thrusters refine attitude, orbital insertion and payload deployment.

That choice was less ambitious than developing a new semi-cryogenic or cryogenic launch vehicle immediately — and far more likely to succeed within startup-level capital and time constraints.

Carbon composites and the mass problem

Solid rockets can become structurally heavy if conventional steel motor cases are used. Every kilogram of casing reduces the payload that can be carried to orbit.

Skyroot’s answer was an extensively carbon-composite vehicle, including large composite motor casings and interstage structures. The company describes Vikram-1 as an all-carbon-composite launch vehicle.

The first-stage Kalam-1200 motor was particularly significant in public programme reporting: roughly 11 metres long, about 1.7 metres in diameter, a monolithic composite motor casing, and around 30 tonnes of solid propellant. ISRO imagery and captions from the campaign identify static testing of the Kalam-1200 motor at SDSC SHAR.

Composite construction provides lower inert mass, high strength-to-weight ratio, corrosion resistance and fewer joints — but manufacturing consistency is hard. Cases must survive pressure, vibration, bending, temperature gradients and acoustic loads without fibre delamination or microscopic defects. This is likely one of Skyroot’s most strategically valuable technology areas.

Additive manufacturing where it mattered most

Government post-launch description highlighted a 100% 3D-printed liquid engine in the orbital-adjustment module. That does not mean the entire rocket was 3D printed. Large solid stages, composite cases, avionics, tanks, nozzles, actuators and structures use other processes.

Additive manufacturing was applied selectively where lower part count, consolidated fluid channels and rapid design iteration offered a direct advantage for a small liquid engine.

Low-shock stage separation

Stage separation is one of the highest-risk moments in flight. Skyroot developed an in-house ultra-low-shock pneumatic separation system. Public qualification reporting described stages separating by about 1.2 metres in roughly 0.2 seconds while maintaining narrow clearances.

Pneumatic separation can reduce shock relative to some traditional pyrotechnic devices — valuable for sensitive small satellites, optical payloads, compact avionics and rideshare manifests.

Incremental qualification before committing to flight

Skyroot followed a stepwise path: component propulsion tests, motor static firings, composite structure testing, the Vikram-S suborbital demonstrator (18 November 2022), mission-computer testing, nozzle and TVC work, interstage and separation qualification, full-stage static firing, launch-site integration, then the maiden orbital mission.

Vikram-S was not merely a publicity flight. It provided operational experience in launch-site processing, aerodynamics, telemetry, flight software, composite structures, regulatory coordination, range safety and real launch operations. Industry reporting before the orbital mission suggested that a large share of relevant systems had some prior validation through Vikram-S and subsequent ground testing.

Propulsion

Three solid-propellant lower stages feed a liquid orbital-adjustment upper stage. Publicly disclosed elements include:

• Composite solid-motor cases and cast solid propellant (exact grain chemistry undisclosed)
• Ablative or composite nozzles and flex-nozzle thrust-vector control
• Raman-I liquid upper-stage engine — tested at ISRO LPSC facilities, per ISRO
• Smaller Raman thrusters (public test reports cite 50-newton units for pitch and yaw in the orbital-adjustment module)

Exact propellant formulations, burn-rate modifiers, insulation recipes and nozzle materials are among the most tightly protected elements of any solid-rocket programme and are not reconstructed here.

Avionics and guidance

An independent avionics stack is required for flight computer, inertial navigation, guidance algorithms, power distribution, telemetry, stage-event sequencing, fault detection, TVC commands and payload deployment.

India’s Copyright Office records a Skyroot computer-software registration titled SOLPROP (November 2023), earlier identified in application materials as ballistic-performance-evaluation software — evidence the company built internal solid-propulsion analysis tools rather than depending entirely on third-party packages.

Structure and manufacturing

Structures include carbon-composite motor cases, composite interstages, fairing, load-transfer rings, avionics bays and separation interfaces. Skyroot has described Kalam-1200 casing production through a proprietary filament-winding process. Process control — fibre angle, resin content, cure, void limits, dome geometry — can be more commercially valuable than the rocket’s visible silhouette.

Skyroot’s Infinity Campus in Hyderabad is publicly described as a large integrated design-and-build campus with a stated manufacturing capacity of about one orbital rocket per month. That figure is factory capacity, not guaranteed launch cadence. Pad availability, range scheduling, regulation, payloads, weather, insurance and mission analysis all constrain actual flight rate.

Wording must stay precise. Skyroot did not simply “borrow ISRO’s rocket.” Public evidence shows Skyroot development plus ISRO infrastructure access, technical assistance, IN-SPACe regulatory coordination and joint launch-campaign execution.

ISRO’s 18 July 2026 release confirms, among other points:

ISRO further states that the first-stage solid motor was cast and tested at SDSC facilities, and that IN-SPACe established the mechanism for non-governmental entities to access ISRO facilities and obtain consultancy, reviews and clearances.

What has not been publicly proven

There is no public evidence establishing that Skyroot purchased the PSLV design, licensed the SSLV architecture, copied a complete ISRO solid-motor design, received a full ISRO engine blueprint, acquired PSLV guidance software, used an ISRO-owned flight computer as the vehicle brain, or purchased a complete government-developed rocket stage for Vikram-1.

The official description consistently identifies Vikram-1 as developed by Skyroot, while separately listing facilities and support from ISRO and IN-SPACe.

Defensible conclusion: government support was extensive at the infrastructure, testing, launch-operation and review levels. A transfer of the core Vikram-1 vehicle design has not been demonstrated publicly.

“Copyrighted technology” is not the correct umbrella term. Different assets are protected differently: software by copyright; inventions by patent; propellant recipes and process know-how often by trade secret; names and logos by trademark; facility use by contract.

Publicly visible Skyroot-owned or claimed IP includes SOLPROP software, proprietary filament-winding and composite casing methods, pneumatic separation know-how, mission systems, vehicle architecture, Raman-family propulsion development and qualification data.

What remains confidential includes facility-use charges, any cost waivers, ownership of improvements developed during assisted testing, depth of design consultancy beyond reviews, commercial CAD/CFD/FEA licences, and specific foreign-origin avionics vendors. No responsible analysis should fabricate those answers.

Post-launch reporting, including statements attributed to Solar Industries, indicates the company manufactured solid propellant used in Vikram-1, supported earlier static trials, supplied related propulsion materials and a heat-mounted safety actuator, and was an early Skyroot investor.

That relationship is strategically intelligent. Solid-propellant production requires explosives licences, controlled chemical infrastructure, mixing and casting, safety systems, NDT and batch traceability. Skyroot could retain design authority while using a qualified industrial producer instead of recreating the entire energetics industry in-house.

A launch vehicle also normally sources carbon fibre, resins, sensors, processors, batteries, valves, actuators, telemetry hardware and additive-manufacturing powders from specialised vendors. Public information is insufficient to name most of those suppliers.

Skyroot was founded in 2018. In May 2026, contemporaneous reporting said it raised another US$60 million led by GIC and Sherpalo Ventures, with BlackRock participation — bringing total capital raised to about US$160 million and a reported valuation near US$1.1 billion, with proceeds aimed at Vikram-1 cadence, manufacturing and Vikram-2.

Secondary filing-based reports have also described a ₹100 crore non-convertible debenture raise in March 2026 and an FY25 loss near ₹99.7 crore. Provisional reporting of roughly ₹100.6 crore FY26 operating revenue from space-systems work — before commercial orbital-launch operations — suggests the company began monetising components or systems capability ahead of launch-service cash flows. Those secondary figures should be read as reported, not as a substitute for a full audited annual report published by the company.
